Ford Backup Camera Factory

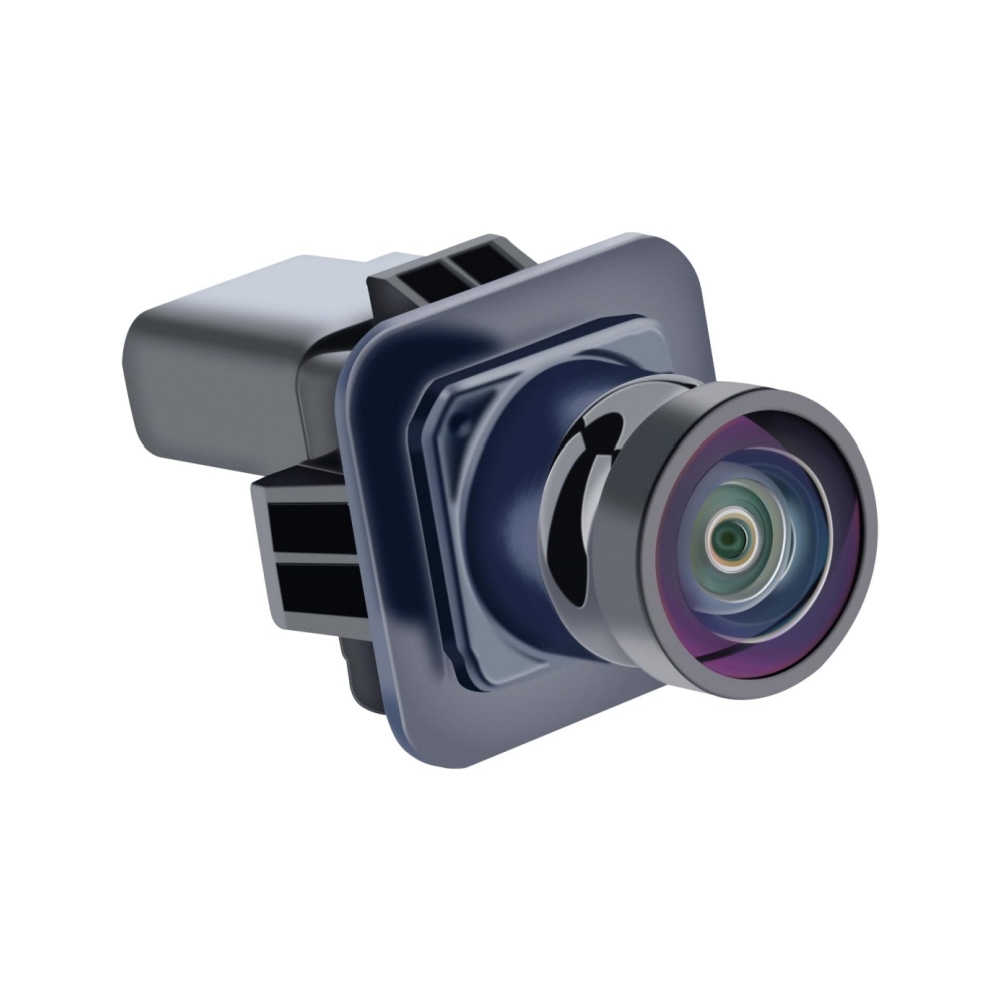

Ford Backup Camera
- OEM/ODM Solutions: Precision-built for Ford F-Series (F150, F250, Super Duty), Transit vans, and other models.
- Ford Compliance: Adherence to OE electrical protocols, mounting designs, and performance benchmarks.
- Scalable Production: 500K+ monthly capacity with custom branding and packaging options.
Our ford backup camera Products
Innovative Backup Camera Systems for Enhanced Driving Safety
- Applications：Ford Explorer Sport Trac 2007-2022, Ford F150 2008-2022, Ford Super Duty 2008-2022
- Color：Texture Black
- Color Option：Chrome, Primed Black
- Keyhole：w or w/o
- Applications：Ford F150 2015-2022
- Color：Texture Black
- Color Option：Chrome, Primed Black
- Keyhole：w or w/o
- Applications：Ford F150 2009-2014
- Color：Texture Black
- Color Option：Chrome, Primed Black
- Keyhole：w or w/o
ford backup camera Specifications
A High-Brightness Display Solution with Multi-Channel Input and Comprehensive Protection Features for Professional Applications
| Image Sensor | 1/3"CMOS PC1058D | 1/4"CMOS PC7070D | 1/3"SONY CCD | 1/3"CMOS PC4089 | 1/4"CMOS PC7440 |
|---|---|---|---|---|---|
|
TV Line
|
700TV Lines
|
420 TV Lines
|
700 TV Lines
|
550 TV Lines
|
480 TV Lines
|
|
Video Resolution
|
976*592
|
648*488
|
976*582
|
720*480
|
720*480
|
|
Connector Type
|
RCA/4PIN
|
RCA/4PIN
|
RCA/4PIN
|
RCA/4PIN
|
RCA/4PIN
|
|
Sensor
|
CVBS
|
CVBS
|
CVBS
|
CVBS
|
CVBS
|
|
Parking line
|
on/off switchable
|
on/off switchable
|
on/off switchable
|
on/off switchable
|
on/off switchable
|
|
|
Mirror/ NON-mirror switchable
|
Mirror/ NON-mirror switchable
|
Mirror/ NON-mirror switchable
|
Mirror/ NON-mirror switchable
|
Mirror/ NON-mirror switchable
|
|
Real Angle of View
|
170 degrees
|
170 degrees
|
170 degrees
|
170 degrees
|
170 degrees
|
|
For a monitor it uses
|
Your aftermarket display
|
Your aftermarket display
|
Your aftermarket display
|
Your aftermarket display
|
Your aftermarket display
|
|
Installation
|
Surface Mount
|
Surface Mount
|
Surface Mount
|
Surface Mount
|
Surface Mount
|
|
Waterproof
|
IP68
|
IP68
|
IP68
|
IP68
|
IP68
|
|
Lens Type
|
Wide Angle
|
Wide Angle
|
Wide Angle
|
Wide Angle
|
Wide Angle
|
|
Voltage
|
12-24 volts
|
12-24 volts
|
12-24 volts
|
12-24 volts
|
12-24 volts
|
Why Choose Us?
No matter the size of your project, DT-Camera delivers reliable, durable, and high-performance Camera Monitor that meet your precise requirements. Get in touch with us today to discuss your OEM/ODM needs and take your business to the next level.
Advanced Technology
Our AHD cameras offer 1080P HD resolution, wide-angle views, and enhanced performance in both bright and low-light conditions, ensuring safety and clarity for your customers.
End-to-End Support
From initial design to production and installation, our team is with you every step of the way to ensure your project is executed smoothly and efficiently.
Fast Turnaround
We understand the importance of deadlines. Our efficient processes and experienced team ensure timely delivery of your custom AHD camera solutions.
Frequently Asked Questions
Provide answers to common questions regarding AHD technology, product installation, troubleshooting, and maintenance.
Absolutely. Our cameras are designed to meet Ford’s electrical protocols, mounting interfaces, and performance requirements.
We currently produce 500,00+ units/month with flexible scalability for large orders.
Yes, we offer rapid prototyping services, delivering samples within 7-10 days for new vehicle integrations.
All cameras are rated IP69K, ensuring resistance to dust, high-pressure water jets, and harsh environments.
100 units for OEM orders. ODM projects can be negotiated case-by-case.
Yes. We support precise compatibility for 2009–2024 F-Series trucks.
Yes. Custom branding (logo, packaging, manuals) is available.
Standard orders ship within 30 days; expedited orders can be delivered in 15 days.
Wholesale & Custom Orders
We value your inquiries and are here to assist you with any questions or concerns regarding our AHD Backup Cameras and services. Feel free to reach out to us through the following channels
The Ultimate Guide to Custom Packaging Solutions by DT-Camera
DT-Camera offers comprehensive custom packaging solutions designed to protect, showcase, and enhance your products. Whether for retail, OEM projects, or bulk orders, our packaging ensures your cameras arrive safely and impress your customers.
Ford Backup Cameras: Safety and Innovation in Reverse
For decades, reversing a vehicle, especially a large truck like the Ford F-150, has been a task fraught with blind spots and risks. In 2018, the U.S. National Highway Traffic Safety Administration (NHTSA) mandated backup cameras in all new vehicles to mitigate accidents—a rule Ford had already embraced years earlier with its advanced camera systems. Today, Ford backup cameras are not just regulatory compliance tools but benchmarks for clarity, durability, and smart integration. This article explores the technology behind Ford’s systems, their evolution, and why they remain a critical safety feature.
1. How Ford Backup Cameras Work
Ford backup cameras are integrated into the vehicle’s rear, typically embedded in the tailgate, bumper, or emblem. When the driver shifts into reverse, the camera activates automatically, streaming live footage to the dashboard or rearview mirror screen.
Key Components:
- High-Resolution Sensor: Most Ford cameras use HD 720p to 1080p sensors to capture sharp images.
- Wide-Angle Lens: 120°–150° field of view minimizes blind spots behind trucks, SUVs, and vans.
- Dynamic Guidelines: Overlays adjust with the steering wheel to predict the vehicle’s path.
- Infrared LEDs: Enable clear visibility in low-light conditions (e.g., nighttime or parking garages).
Example: The 2024 Ford F-150 backup camera displays a split-screen view when towing, showing both the trailer hitch and rear obstacles.
2. Evolution of Ford’s Backup Camera Systems
Ford has consistently refined its camera technology to match driver needs:
- Early 2000s: Basic analog cameras on luxury models like the Lincoln Navigator.
- 2010s: Standardization across Ford vehicles (e.g., Escape, Explorer) with 480p resolution.
- 2020s: Integration with Ford SYNC® 4 Infotainment, offering HD 1080p, zoom functions, and trailer assist modes.
A standout feature in newer models is 360-Degree Camera Systems (available on F-150 Platinum and King Ranch trims), which stitch feeds from front, rear, and side cameras to create a bird’s-eye view.
3. Why Ford Backup Cameras Stand Out
a. Rugged Durability:
Ford designs its cameras for harsh conditions. Tested to IP69K standards, they resist high-pressure water jets, off-road dust, and temperatures ranging from -40°F to 185°F—critical for trucks like the Super Duty.
b. Smart Integration:
- Trailer Coverage: Ford’s Pro Trailer Hitch Assist uses camera guidance to align hitches effortlessly.
- Split-Screen Displays: Allow drivers to monitor multiple angles (e.g., cargo bed and trailer).
c. User-Friendly Interfaces:
Touchscreen controls let drivers adjust guidelines, zoom in on obstacles, or toggle between camera modes.
4. Technical Specifications
| Feature | Ford F-150 (2024) | Ford Transit (Commercial) |
|---|---|---|
| Resolution | 1080p HD | 720p HD |
| Field of View | 150° | 130° |
| Night Vision | Yes (IR LEDs) | Yes |
| Waterproof Rating | IP69K | IP67 |
| Display Integration |
5. Common Applications
- Daily Driving: Navigating crowded parking lots or tight urban streets.
- Towing: Aligning trailers with precision using dynamic hitch guides.
- Off-Roading: Spotting rocks, stumps, or uneven terrain in 4×4 mode.
6. Challenges and Limitations
- Dirty Lenses: Mud or snow can obscure camera views—though hydrophobic coatings help.
- Screen Dependency: Drivers must still check mirrors and surroundings.
- Older Models: Pre-2010 Ford vehicles may require aftermarket upgrades for HD quality.
7. The Future of Ford Backup Cameras
Ford is investing in next-gen camera tech, including:
- 1080p Resolution: Sharper imaging for detecting smaller objects (e.g., bike racks).
- Augmented Reality (AR): Overlaying navigation prompts onto camera feeds.
- AI Obstacle Recognition: Flagging pedestrians or cyclists in real time.
Conclusion
From the rugged F-Series to family-friendly Explorers, Ford backup cameras exemplify how simple technology can dramatically improve safety. By combining high-resolution imaging, smart software, and rugged engineering, Ford ensures drivers can reverse with confidence—whether hauling a trailer downtown or navigating a dusty job site.
As vehicles evolve toward autonomy, Ford’s camera systems will continue bridging the gap between human intuition and machine precision. After all, seeing what’s behind you isn’t just helpful—it’s lifesaving.
